Stamping type cable protector produced by our company ranges from 2⁷/₈” to 5 ¹/₂”.

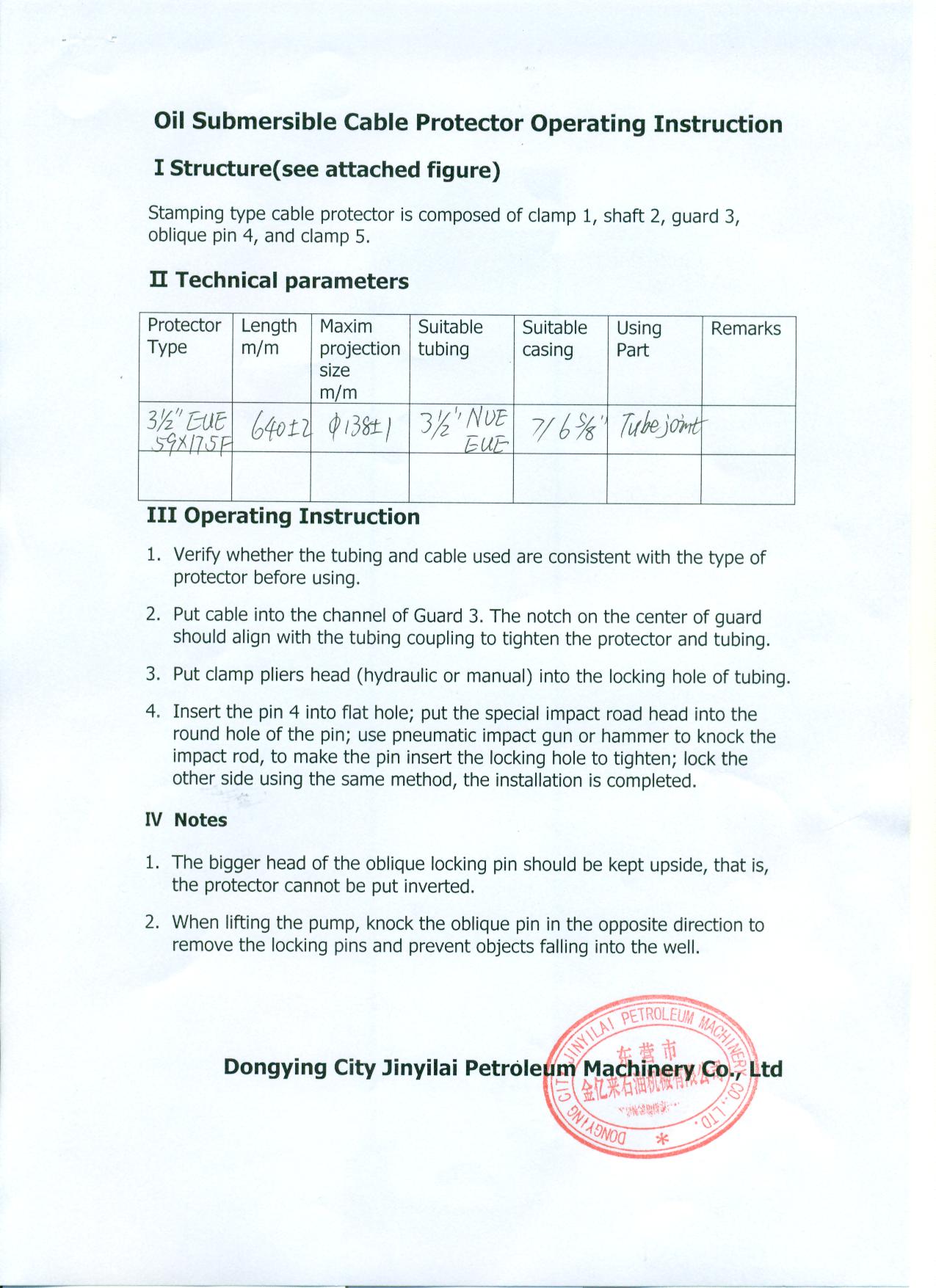

         Stamping type cable protector is composed of protector body, clamp, shaft and tapered flat pin. The protector is connected to tubing by pin’s fasten function. It can be widely protect the couplings, tubing, the production safety valve, completion metering, well testing, operations, chemistry, injection pipeline, and make all kinds of cable line down into the well safely and quickly. The materials can be carbon steel, stainless steel or other materials required by customers. Manual clamps or hydraulic clamps are essential tools in the oil field installation.

31/2″EUE.59×17.5F Mid Joint	27/8″EUE.59×17.5F Mid Joint	31/2″EUE.59×17.5FCable protector
27/8″EUE.59×17.5FCable protector	Stuffing box	Sucker Rod Series
Tubing	Pumping Unit

Address: Shengli Industrial Park, Dongying District, Dongying City, Shandong Province
Zip code：257000
Telephone：+86-0546-8179188
Mobile phone：15006867330
Fax：+86-0546-8179188
Email：H150784238@163.com

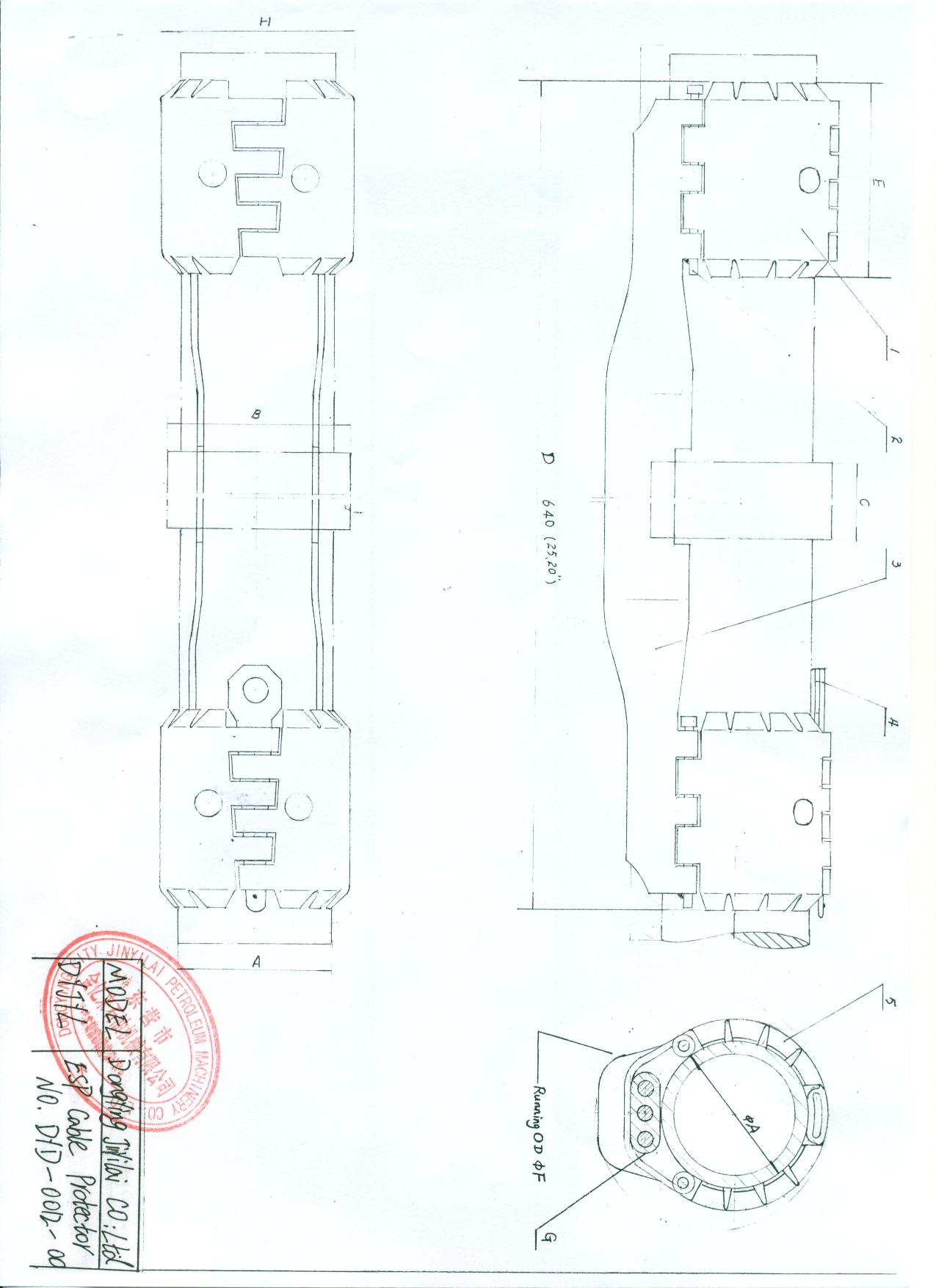

Structures of stamping type cable protector：
1、Application to any form of cross coupling connection；
2、Can install and remove quickly in constrution；
3、Can use in different environments；
4、The product can repair and reuse；
5、The grooves in the center of the protector plays an added protective function in prevent axial direction movement。
